1、減振條可以降低噪音和振動及延長設備使用壽命。
2、可提供與電機IMB35、IP54配套的DSM型減振條。
3、減振條材質為丁晴橡膠（耐油）。
5、所有減振條均按照所需承受的重量和負載設計。

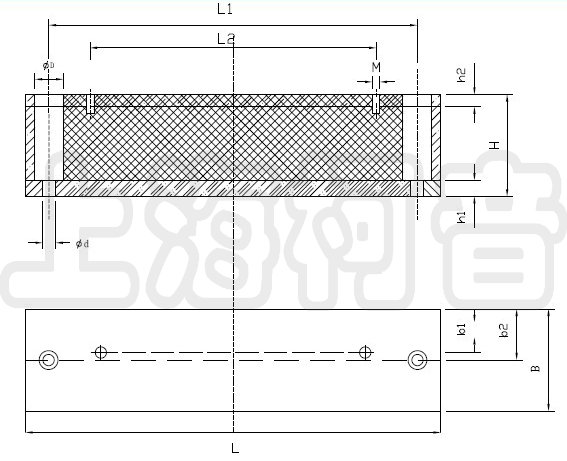

| DSM型橡膠減振條適用于IMB35、IP54電機 | |||||||||||||
| 減振條規格 | 電機規格 | L | L1 | L2 | H | h1 | h2 | B | b1 | b2 | d | D | M |
| DSM71 | 71 | 196 | 156 | 90 | 40 | 8 | 12 | 50 | 21 | 25 | 14 | 20 | 6 |
| DSM80 | 80 | 176 | 146 | 100 | 40 | 8 | 12 | 50 | 22 | 25 | 14 | 20 | 8 |
| DSM90S | 90S | 196 | 156 | 100 | 40 | 8 | 12 | 50 | 24.5 | 25 | 14 | 20 | 8 |
| DSM90L | 90L | 240 | 205 | 125 | 40 | 8 | 12 | 50 | 24 | 25 | 14 | 20 | 8 |
| DSM100L | 100L | 240 | 205 | 140 | 40 | 8 | 12 | 50 | 22 | 25 | 14 | 20 | 10 |
| DSM112M | 112M | 240 | 205 | 140 | 40 | 8 | 12 | 50 | 22 | 25 | 14 | 20 | 10 |
| DSM132S | 132S | 280 | 245 | 140 | 45 | 8 | 12 | 50 | 20 | 25 | 14 | 20 | 10 |
| DSM132M | 132M | 280 | 245 | 178 | 45 | 8 | 12 | 50 | 20 | 25 | 14 | 20 | 10 |
| DSM160M | 160M | 340 | 300 | 210 | 60 | 15 | 15 | 70 | 28 | 35 | 18 | 26 | 12 |
| DSM160L | 160L | 416 | 370 | 254 | 60 | 15 | 15 | 70 | 28 | 35 | 18 | 26 | 12 |
| DSM180M | 180M | 416 | 370 | 241 | 60 | 15 | 15 | 70 | 35 | 35 | 18 | 26 | 12 |
| DSM180L | 180L | 446 | 400 | 279 | 60 | 15 | 15 | 70 | 35 | 35 | 18 | 26 | 12 |
| DSM200L | 200L | 492 | 430 | 305 | 60 | 15 | 15 | 70 | 35 | 35 | 22 | 33 | 16 |
| DSM225S | 225S | 492 | 430 | 286 | 60 | 15 | 15 | 70 | 35 | 35 | 22 | 33 | 16 |
| DSM225M | 225M | 492 | 445 | 311 | 60 | 15 | 15 | 70 | 35 | 35 | 22 | 33 | 16 |
| DSM250M | 250M | 492 | 445 | 349 | 60 | 15 | 15 | 100 | 50 | 50 | 22 | 33 | 20 |
| DSM280S | 280S | 614 | 570 | 368 | 60 | 15 | 15 | 100 | 50 | 50 | 22 | 33 | 20 |
| DSM280M | 280M | 614 | 570 | 419 | 60 | 15 | 15 | 100 | 50 | 50 | 22 | 33 | 20 |
| DSM315S | 315S | 614 | 570 | 406 | 60 | 15 | 15 | 120 | 60 | 60 | 22 | 33 | 24 |
| DSM315M | 315M | 614 | 570 | 457 | 60 | 15 | 15 | 120 | 60 | 60 | 22 | 33 | 24 |
| DSM315L | 315L | 704 | 660 | 508 | 60 | 15 | 15 | 120 | 60 | 60 | 22 | 33 | 24 |
